Multi-Tenancy – Authentication and Authorization

In the last post, we have seen how to design multi-tenant solution and what all factors influence design decisions. One of the questions I received on that post – what about authentication and authorization in multi-tenant scenario?

To understand authentication and authorization in a multi-tenant scenario, let’s refer back the example of Apartment Society, where each apartment is classified as single tenant within an Apartment Society. Each apartment may have multiple residents, which can be classified as users and all are authenticated before entering the apartment society. Each one of them can share common resources of apartment society. But when they have to enter any apartment, they are authorized first. That means, after authorization they can only enter their own apartment, not into any other apartment. So, in short, at the time of entering an apartment society, authentication occurs, and at the time of entering an apartment, authorization occurs.

Now for multi-tenant solution, this authentication and authorization experience can vary. That depends on, at what time user is selecting its tenant/organization to which they belong to. This experience can be categories into three major categories,

  • Tenant selection before authentication – In this case, user will be asked to provide/select tenant name along with authentication details. System will process authorization, along with authentication for this type of user.
  • Tenant selection after authentication – In this case, user will be authenticated first. After that user will be prompted to provide/select tenant name, based on that he/she will be authorized.

Blog 2 - 1

  • Automatic tenant selection based on domain – In this case, during the time of authentication, system will identify the user’s sub-domain or company’s organization from his/her email ID and based on that information user will be automatically authorized.

Now the question comes, is there a simple way to implement this authentication and authorization. Answer is YES, within Azure, you have two options – Azure AD B2B and Azure AD B2C.

  • Azure AD B2B is for scenario, where you would like to share organization resources with external users so they can collaborate. https://docs.microsoft.com/en-us/azure/active-directory/b2b/what-is-b2b
  • Azure AD B2C is primarily for customer-facing applications. Azure AD B2C can be leveraged as full-featured identity system for your application, where different tenant/organization identities can be supported.

Sign-in journey using Azure AD B2C

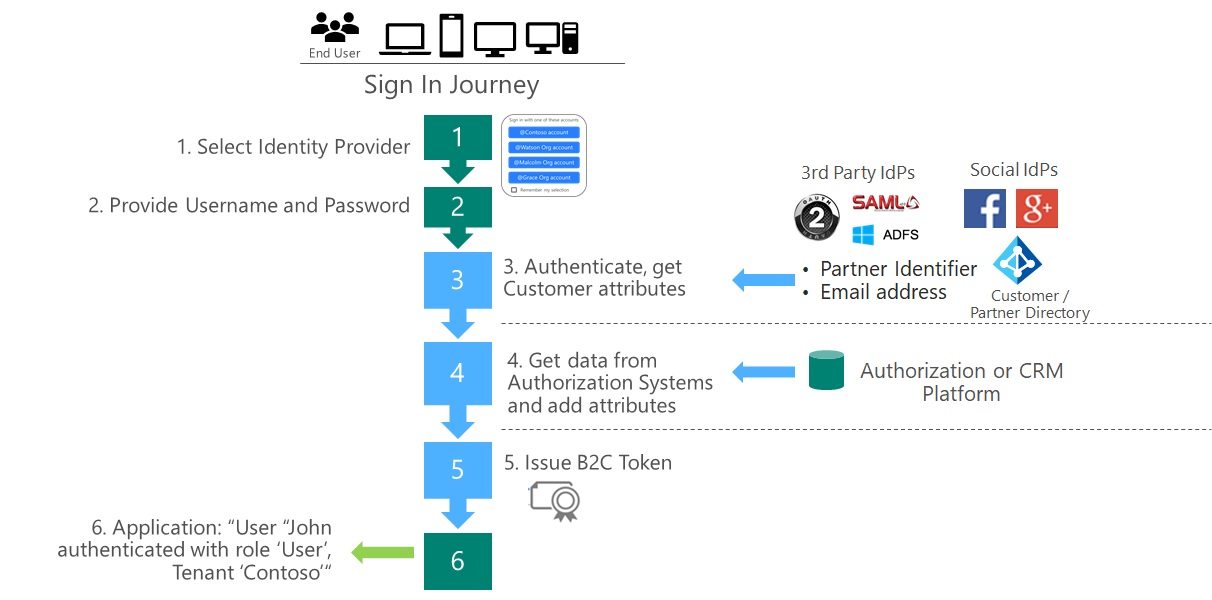

Following is an example of sign-in journey using Azure AD B2C,

Blog 2 - 2

  • Step 1 – user select identify provider
  • Step 2 – user provides username and password
  • Step 3 – leverage Azure AD B2C for authentication, which internally connects to multiple identity providers. Please refer tutorial about how to add identity providers – https://docs.microsoft.com/en-us/azure/active-directory-b2c/tutorial-add-identity-providers
  • Step 4 – Authorize user based on tenant, and additional attributes collated from any CRM system.
  • Step 5 – Issue Azure AD B2C token to the calling application
  • Step 6 – Calling application receives token, parses claims and accordingly process access to the user.
