Recently I was having a conversation regarding multi-tenancy, and one of the responses I got – our application already supports multiple users, so it’s already a multi-tenant. Do multiple users mean multi-tenant – is that correct?

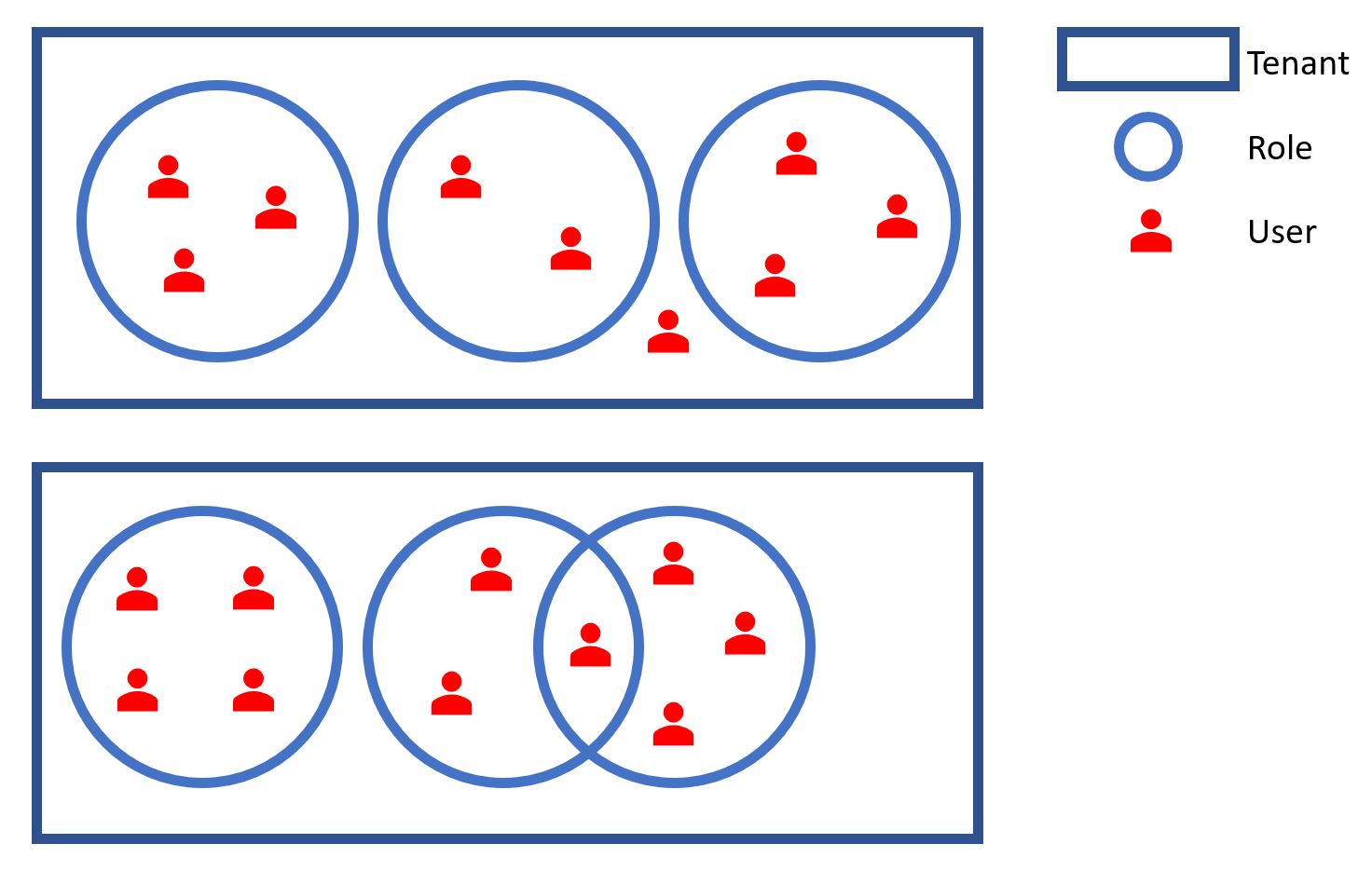

Before we even go further and explore multi-tenancy, lets understand difference between a user and a tenant.
- User – User is smallest unit of classification. User can be independent or can belong to a role or a tenant. Simplest way to identify a user – user will have its own username and password to login into the system.
- Role – Role is classification within a tenant and multiple users can belong to a role. E.g. within a system, a group of users may belong to an administrator role or sales role, etc. One role may overlap over another role, but a role can’t be a subset of another role.
- Tenant – Tenant is the largest classification. Tenant is generally used to define a department, or an enterprise, which enforces their own policies or rules within a system. Each tenant will consist of different set of users. User is not shared across a tenant.
Apartment Society is a perfect example of a multi-tenancy. Apartment Society has centralized administration for security (CCTV, security at entrance, etc), electricity, water, and other facilities. These facilities are governed by the apartment association and shared by tenants. One apartment can be classified as one tenant, for whom the individual electricity/water bill is generated. But each apartment may have multiple users, i.e. family members staying within an apartment. And what is a benefit of an apartment – it provides security, privacy to a tenant, even if they are using shared resources of apartment society like electricity, water, parking etc.
So, what is Multi-tenancy with respect to Software?
When a single application is shared by multiple tenants (i.e. organizations or departments) is termed as multi-tenant application, considering each tenant is oblivious of another tenant. Multi-tenant application should be smart enough to have partitioning of data, compute and user experience based on each tenant.
Benefits of multi-tenancy
- Reduction of operational cost – as shared infrastructure is leveraged by multiple tenants.
- Centralized management – as shared infrastructure needs to be managed, rather than multiple infrastructures for each tenant.
- Reduces turn around time to on-board new tenant.
Things to be considered carefully while designing multi-tenant solution
- Data Privacy – strict authentication and authorization required, so that customers should only access their own data.
- Serviceability and Maintainability – single update to the application will affect many different tenants, so any update must be planned carefully.
What factors influence multi-tenant architecture?
Before we define a multi-tenant architecture, lets look at what factors will influence architecture patterns for multi-tenancy,
- Views – tenant can define styling of the application
- Business Rules – tenant can define their own business rules and logic
- Data Schema – tenant can define their own database schema for the application
- Users and Groups – tenant can define their own rules to achieve data/system level access controls
- User or System Load – each tenant may have different user-load requirements. E.g. Tenant-A has huge user base, and in comparison, Tenant-B & Tenant-C combined has a small user base.
Type of design patterns to implement Multi-tenancy

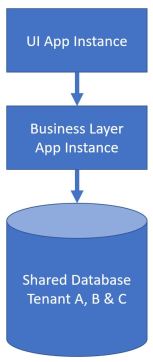

Multi-tenancy with a single multi-tenant database
This is the simplest form of multi-tenancy. It consists of single instance of app instance (both UI and business layers), along with single database shared across multiple tenants. Usually tenant data is segregated within the database using tenant key/ID.
Multi-tenancy with single database per tenant
Second form of multi-tenancy is – single instance of app instances (both UI and business layers), but database is segregated for each tenant. Cost will be higher than the first option, but operation complexity will reduce due to individual databases, and will make it easy to manage data schema changes for each tenant.
One of the solutions to implement this pattern is through Azure SQL Database Elastic Pool feature – https://docs.microsoft.com/en-us/azure/sql-database/sql-database-elastic-pool
Multi-tenancy with single-tenant business compute instances with single database per tenant
Third form of multi-tenancy is – single instance of UI app instance, but business compute layer and database are segregated for each tenant. Cost will increase more than the second option, but operation complexity will reduce due to individual databases and easy to manage business compute instances for each tenant. Will make it easy to implement and deploy business rules for each tenant.
With adoption of containerization and docker technology, it becomes easier to segregate compute instances, and even than manage them as one unit. Examples are Azure Service Fabrics and Kubernetes. Azure Service Fabric and Kubernetes are distributed systems platform that makes it easy to package, deploy, and manage scalable and reliable micro-services and containers.

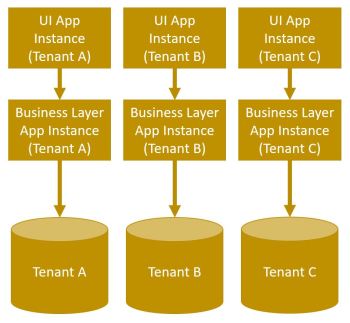

Multi-tenancy with single tenant compute instances with single database per tenant
Fourth form of multi-tenancy is – all three layers, UI app instance, business compute layer and database are segregated for each tenant. Cost will be highest for this option, but will provide complete segregation of security, privacy, compute and data for each tenant.
Hybrid Approach for Multi-tenancy
We looked at four different patterns to implement multi-tenancy. There is another factor that influence a lot in selection of patterns, i.e. user/system load for a tenant. Suppose user load for Tenant-A is so huge that we can’t share its instances with another other tenant. But user load for Tenant-B & Tenant-C can be shared within a single instance. So, for these scenarios, you can consider hybrid approach, i.e. mix and match option 1 to 4. Example – for Tenant-A, go for segregated compute and database instances, but for Tenant-B and Tenant-C, you can go for shared compute instances.
So in end, multi-tenant architecture will help you serve everyone, from small customer to large enterprise, using shared resources, reduced cost and brings operational efficiency.
